Know who enters and who exits. In real time, with direction.

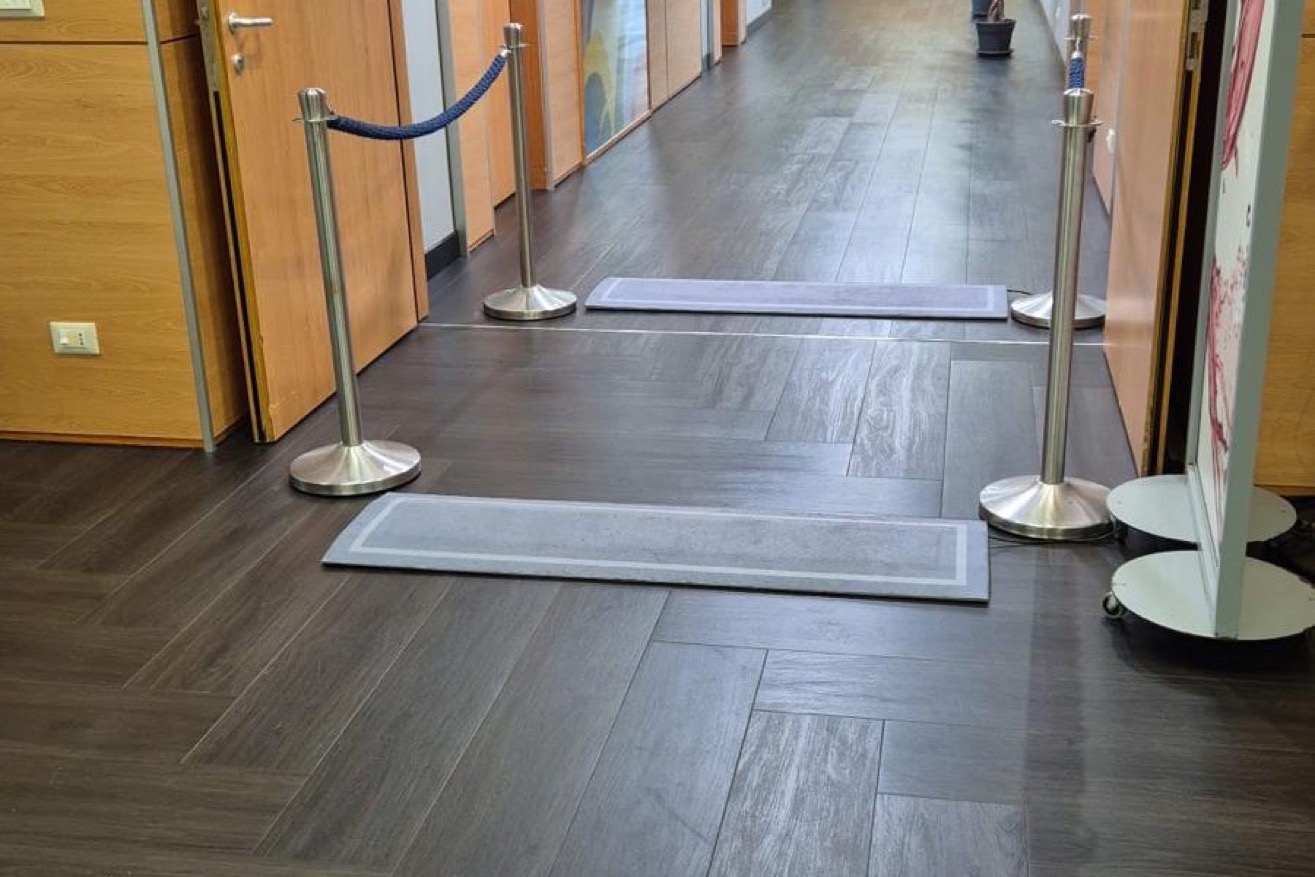

RFID gate in a retail or logistics environment

Gate Manager is a web application that governs directional RFID gates. It monitors tag transits in real time, recognizes direction (IN or OUT), and publishes events to external systems via MQTT. Configurable, reliable, and designed to run locally — installed near the gate, always on.

Download Brochure

Gate Manager ships with a web-based UI installed near the gate

Gate Manager web interface on a monitor near the RFID gate

Operators monitor transits in real time from the Movements dashboard. Administrators configure the reader, antennas, and directional algorithm. Processing runs locally — no latency on transit detection — while data is then forwarded to the cloud via a configurable MQTT connection.

Book a demo

Directional Detection

Recognizes tag direction (IN or OUT) in real time using a configurable algorithm that compares antenna readings across two zones.

MQTT Integration

Publishes transit events to any external broker via MQTT. Every passage becomes a structured message, ready for your WMS, ERP, or custom application.

Complete Configurability

Reader, antennas, algorithm parameters, and MQTT settings — all configurable from the UI without touching the backend.

HOW IT WORKS

Four capabilities that make a directional RFID gate work reliably: from hardware setup to event delivery.

  1. 01 — Gate configuration

    Reader, antennas, two zones

    Gate Manager connects to the RFID reader via LLRP and manages two antenna zones — IN and OUT. TX power, RX sensitivity, session, search mode, and RF profile are all configurable from the UI.

  2. 02 — Transit detection

    Trigger, read, decide direction

    When a tag enters the field, the directional algorithm opens a read window, collects antenna readings from both zones, and determines direction by comparing first-seen timestamps. Confidence score included.

  3. 03 — Event publishing

    Every transit, one MQTT message

    Validated transit events are published in real time to a configurable MQTT broker — with EPC, direction, confidence, antenna sequence, and timestamp. Structured, traceable, ready to consume.

  4. 04 — Diagnostic & monitoring

    Raw reads, live, for troubleshooting

    The Diagnostic section streams raw reader data in real time — independent from Movements. Use it to verify antenna coverage, RSSI levels, and tag visibility before going live.

Industry — Events & Live Experiences

Real-time IN/OUT tracking at every room entrance, across a live event

Live event organizers use Gate Manager to track guest movement across room entrances in real time — automatically recognizing direction of passage and logging attendance as it happens. No manual headcounts, no reconciliation errors. The data flows directly into the event management system via MQTT.

Discover more

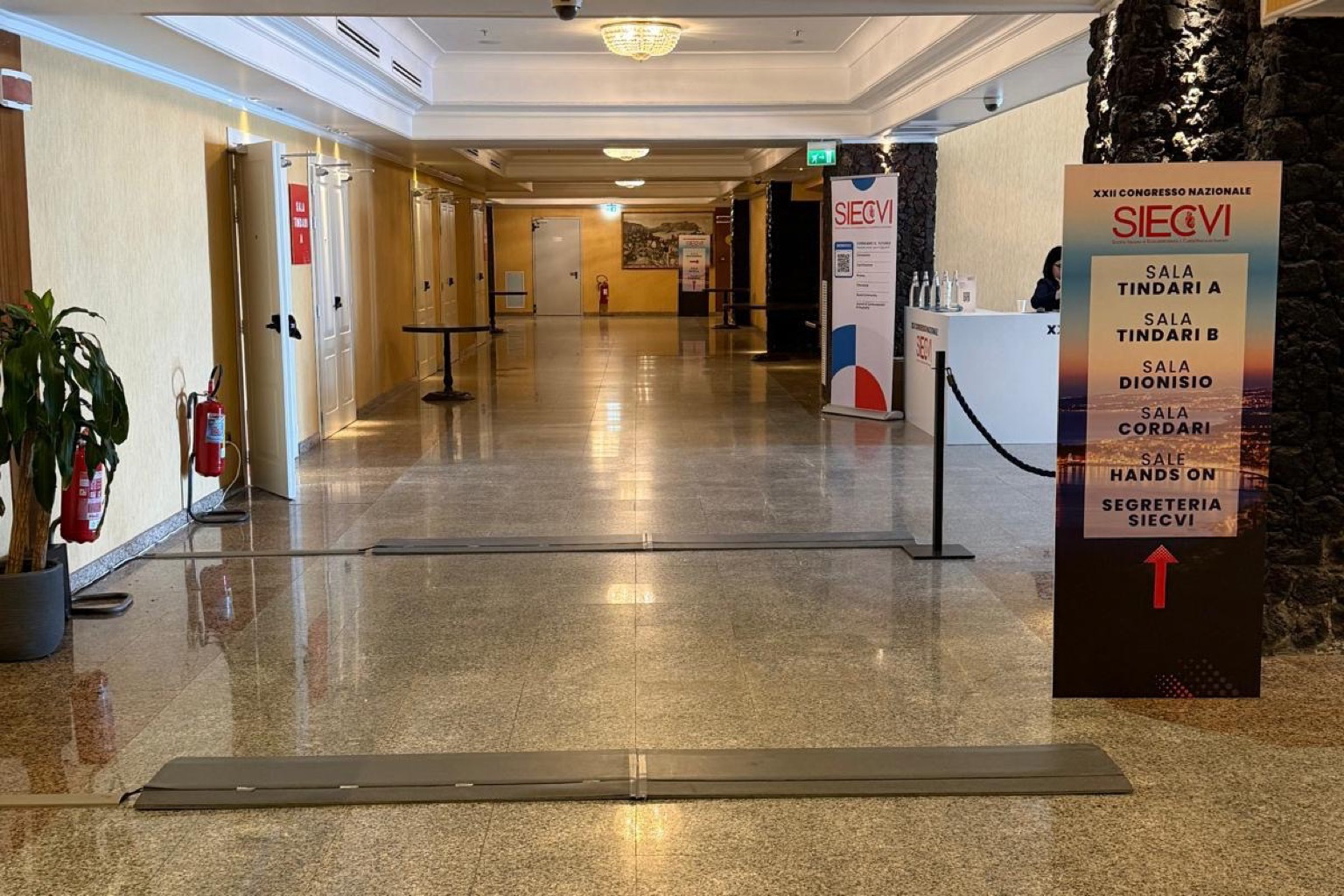

Directional RFID gate in operation, tracking real-time transits

Real-time, local, reliable

Gate Manager runs locally on the gate hardware — no cloud, no external dependency, no single point of failure.

RFID Readers

Impinj R700 and all readers compatible with Device Manager

MQTT Brokers

Any standard MQTT broker

Connects to any broker via TCP. Configurable tenant, scope, division and client ID. Automatic reconnection on broker drop — events resume as soon as the connection is restored.
