Solutions — Tunnel Manager

The middleware that sits between your WMS and your RFID tunnel — and handles everything in between.

RFID tunnel in a logistics warehouse

Tunnel Manager is middleware for RFID tunnel management. It sits between your WMS or ERP and the tunnel hardware — readers, antennas, barcode scanners, GPIOs — and turns the entire setup into a single logical object your system can talk to. Real-time monitoring, configurable logic, secure integration.

Download Brochure

Device Manager ships as a local service installed near your application

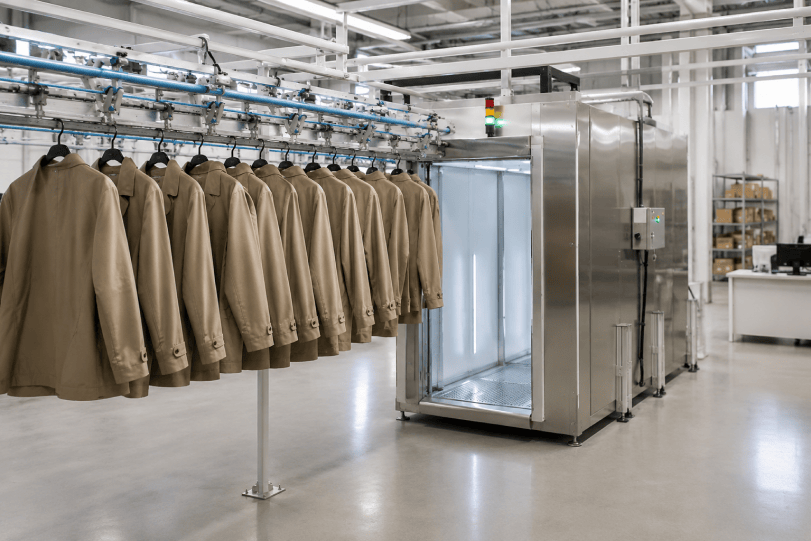

Fashion items on hangers in a logistics facility

Your application calls a single REST endpoint. Device Manager handles the reader, the protocol, the edge cases. No custom SDK, no vendor documentation to read.

High Performance & Security

Fine-tuned RFID reading with robust access control, key management, and authentication for maximum precision and protection.

Flexible Integration

Multi-protocol and multi-channel support ensures seamless adaptation to any architecture — FTP, REST API, Webhook, PLC.

Complete Configurability

Antennas, GPIOs, GPOs, and triggers can be customized to meet specific operational needs.

HOW IT WORKS

Four areas every tunnel deployment needs: from initial setup to the moment a green light blinks at the end of the conveyor.

  1. 01 — Tunnel configuration

    The whole setup, one object

    An RFID tunnel includes readers, antennas, barcode scanners, and GPIOs. Tunnel Manager integrates and controls them all, turning the entire setup into a single logical RFID object that can be customized, monitored, and managed from one place.

  2. 02 — Data reading and management

    Trigger, capture, apply rules

    Once a parcel is identified, Tunnel Manager triggers the RFID reader, collects EPC and TID data, stores it, and applies both business rules and low-level RFID logic. Reading start/stop is event-driven — GPIO signals, barcode scans, timers.

  3. 03 — Reading outcomes

    Autonomous reactions, configurable rules

    After tag detection, Tunnel Manager activates outputs — traffic lights, alarms, actuators — based on your rules. It distinguishes complete, incomplete, and erroneous parcels. Data exported via Webhooks, FTP, or API.

  4. 04 — Event monitoring

    Real-time visibility interface

    Centralized interface with clear visual indicators (OK · KO · Missing) and detailed diagnostics. Interfaces with PLCs or WMS and forwards logs to external systems for centralized collection.

Industry — Logistics & Fashion

16 tunnels, one automated warehouse. Inventory while you sleep.

Full inventory counts every 4 months, no operators involved. The client used to run manual counts with barcode scanning, pulling operators onto the floor each time. Now the count runs automatically overnight, leveraging the warehouse's existing automation — no manual scanning, no staff diverted from other tasks.

Discover more

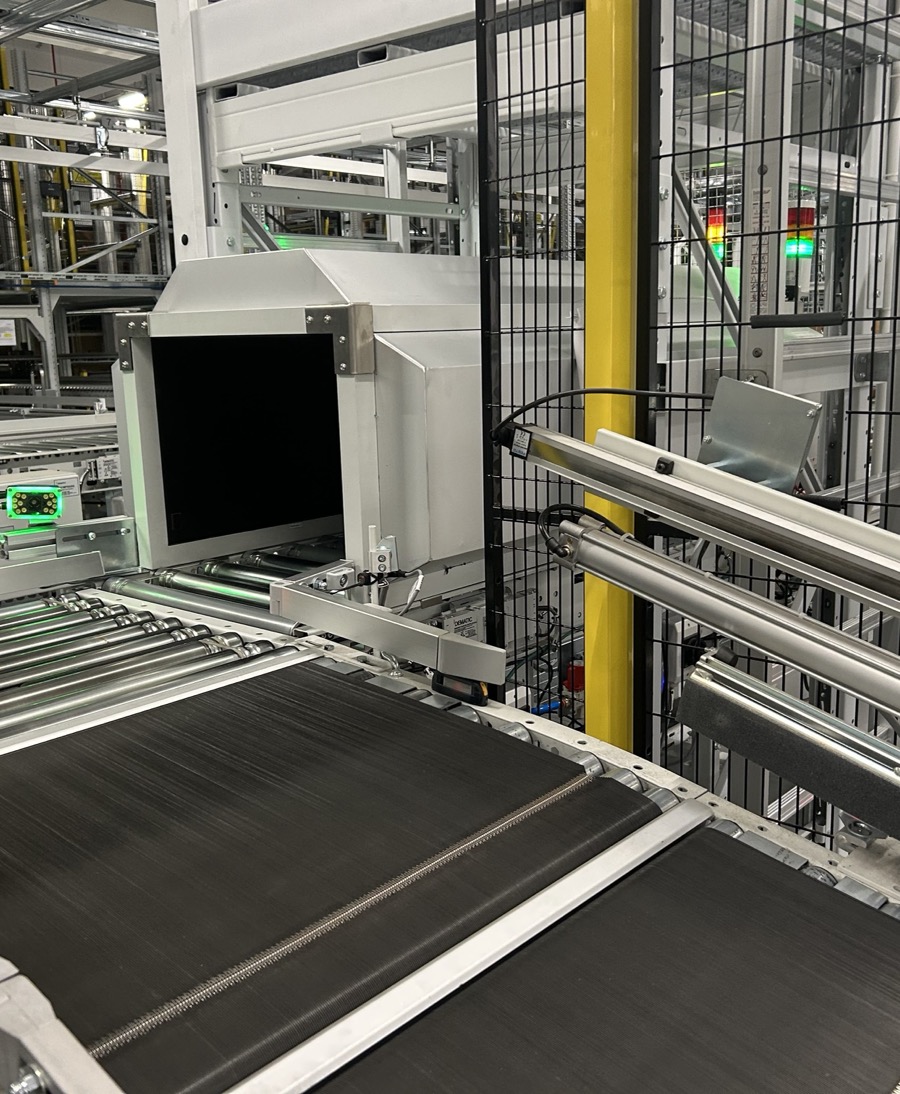

Automated warehouse with RFID reading tunnels

Multi-vendor, multi-device

The agent abstracts both behind a flexible, modular configuration — change vendor, change device, same integration.

RFID Readers

Impinj and Wirama

Direct integration with Impinj and Wirama RFID readers. Additional vendors can be enabled through the modular configuration layer — talk to us about your specific reader.

Barcode readers

Any TCP/IP barcode reader

Works with any barcode reader that exposes a TCP/IP interface — no vendor lock-in, no custom adapter required. Configure once, scan everything.
